Flat Wire Conveyor Belts and Plastic Sprockets for Food
Views: 20 Author: Site Editor Publish Time: 2024-06-07 Origin: Site
In food safe field,there are more and more flat wire conveyor belts and plastic sprockets ,which take important function,such as food freezer,dryer,cooler,cooker,packing,grading and so on. why it so popular in food safe industry,because the advance of itself,economical cost,longer work life,solid construction(made of flat wire and rods),big open,it is suitable for air flow,water dropped,driven by sprockets,promise the belt is flat and stable in working;and the plastic sprockets promise the food are not polluted by metal dust,because when it take the belt to roll,there is no dust to meet.
In order to service the food industry better,we provide many styles of flat wire conveyor belt and plastic to choose.No matter what is the open,size and specification you need,we could provide standard or non standard belts and sprockets to satisfied with your requirement.
When you communicate with our team about the flat wire belt and plastic,there are more works and detail information to talk,how to communicate it with easy and simple way is very important,so we prepare some standard flat wire belts and plastic sprockets in refer; most of customers requirement could be solved by it.see the detail information followed:
Standard duty Flat wire belt with clinched edge
Standard duty Flat wire belt with weld edge
Heavy duty Flat wire belt with weld edge
Heavy duty Flat wire belt with clinched edge

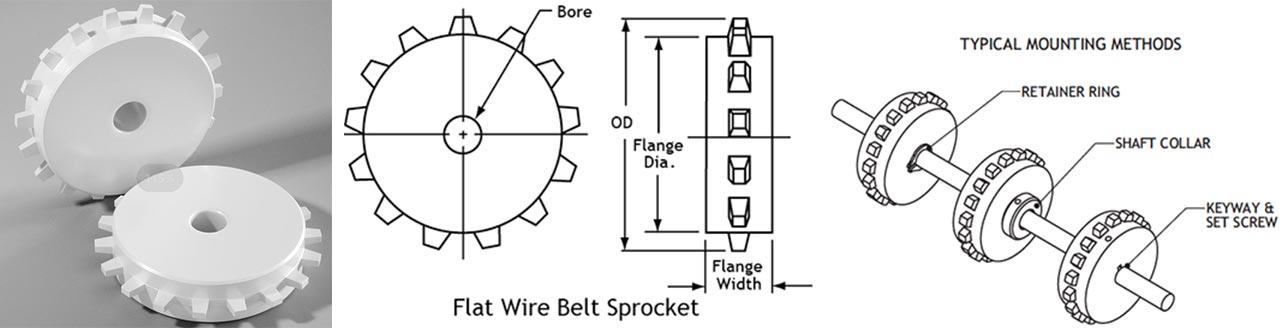

For Plastic sprockets,see the technical data followed:
Plastic Flat Wire Belt Sprockets - Ultra-D (White UHMW) For True 1/2" x 1/2" Standard Duty Belts
Part No.
Teeth
Flange Dia.
O.D.
Flange Width
Bore
FW1U-22
22
3.39"
4.13"
1-1/2"
3/4"
FW1U-38
38
6.17"
6.89"
1-1/2"
3/4"
FW1U-46
46
7.53"
8.27"
1-1/2"
3/4"
FW1U-62
62
10.31"
11.05"
1-1/2"
1"
Plastic Flat Wire Belt Sprockets - Ultra-D (White UHMW) For 1/2" x 1" & 1" x 1" East Coast/Standard Duty Belts
Part No.
Teeth
Flange Dia.
O.D.
Flange Width
Bore
FW2U-13
13
3.98"
4.75"
2"
3/4"
FW2U-18
18
5.7"
6.48"
2"
3/4"
FW2U-23
23
7.42"
8.20"
2"
1"
Plastic Flat Wire Belt Sprockets - Ultra-D (White UHMW) For 1/2" x 1" & 1" x 1" Heavy Duty Belts
Part No.
Teeth
Flange Dia.
O.D.
Flange Width
Bore
FW3U-13
13
4.00"
4.95"
2"
3/4"
FW3U-18
18
5.66"
6.65"
2"
3/4"
FW3U-23
23
7.39"
8.39"
2"
1"
FW3U-25
25
8.07"
9.07"
2"
1"
FW3U-31
31
10.16"
11.16”
2"
1"
FW3U-37
37
12.17"
13.17”
2"
1"
Plastic Flat Wire Belt Sprockets - Ultra-D (White UHMW) For 1/2" x 1/2" Modified Duty Belts
